Right-hand lever clamps with a built-in analog indicator are designed for all types of external dimension measurements of ground and finished parts using the relative method.
One of the clamp feet is adjustable for setting the initial size of the part, while the other foot is movable and connected to the measuring device.

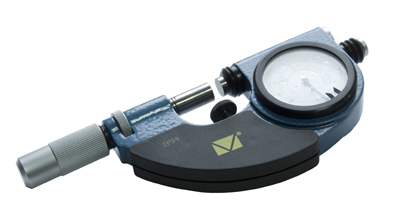

MICROTECH® lever clamps with built-in indicator (right) guarantee accurate measurements.
| Type | Price, UAH * |
Price, UAH * |
||||
| Range, mm | Division price, mm | Accuracy, mm | Force, N | |||
| СР-В-25 кл.1 | 0 | 0.001 | ±0.0014 | 0.6 | 19602 | 435.6 |
| СР-В-25 кл.2 | 0-25 | 0.001 | ±0.002 | 0.6 | 16200 | 360 |
| СР-В-50 кл.1 | 25-50 | 0.001 | ±0.0014 | 0.6 | 22950 | 510 |
| СР-В-50 кл.2 | 25-50 | 0.001 | ±0.002 | 0.6 | 18576 | 412.8 |
| СР-В-75 кл.1 | 50-75 | 0.001 | ±0.0014 | 0.6 | 29970 | 666 |
| СР-В-75 кл.2 | 50-75 | 0.001 | ±0.002 | 0.6 | 25002 | 555.6 |
| СР-В-100 кл.1 | 75-100 | 0.001 | ±0.0014 | 0.6 | 33426 | 742.8 |
| СР-В-100 кл.2 | 75-100 | 0.001 | ±0.002 | 0.6 | 27324 | 607.2 |
*Prices are listed without 20% VAT.
Download PDF document (10 Mb)
